Phase Changes

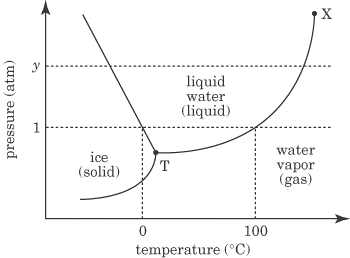

The intersection of all three lines is known as the triple point (represented by a dot and a T on the figure). At this point, all three phases of matter are in equilibrium with each other. Point X represents the critical point, and at the critical point and beyond, the substance is forever in the vapor phase.

This diagram allows us to explain strange phenomena, such as why water boils at a lower temperature at higher altitudes, for example. At higher altitudes, the air pressure is lower, and this means that water can reach the boiling point at a lower temperature. Interestingly enough, water would boil at room temperature if the pressure was low enough!

One final note: If we put a liquid into a closed container, the evaporation of the liquid will cause an initial increase in the total pressure of the system, and then the pressure of the system will become a constant. The value of this final pressure is unique to each liquid and is known as the liquid’s vapor pressure . Water has a relatively low vapor pressure because it takes a lot of energy to break the hydrogen bonds so that molecules enter the gas phase. Water and other liquids that have low vapor pressures are said to be nonvolatile . Substances like rubbing alcohol and gasoline, which have relatively high vapor pressures, are said to be volatile.

Example

What happens to water when the pressure remains constant at 1 atm but the temperature changes from -10ºC to 75ºC?

Explanation

Looking at the phase change diagram for water and following the dashed line at 1 atm, you can see that water would begin as a solid (ice) and melt at 0ºC. All of the water would be in liquid form by the time the temperature reached 75ºC.

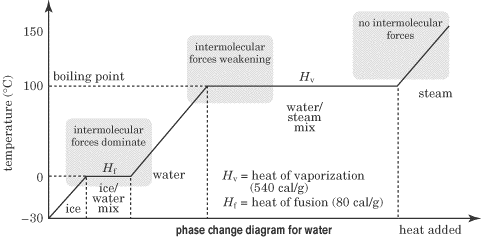

The second type of phase change graph you might see on the SAT II Chemistry exam is called a heating curve. This is a graph of the change in temperature of a substance as energy is added in the form of heat. The pressure of the system is assumed to be held constant, at normal pressure (1 atm). As you can see from the graph below, at normal pressure water freezes at 0ºC and boils at 100ºC.

The plateaus on this diagram represent the points where water is being converted from one phase to another; at these stages the temperature remains constant since all the heat energy added is being used to break the attractions between the water molecules.
